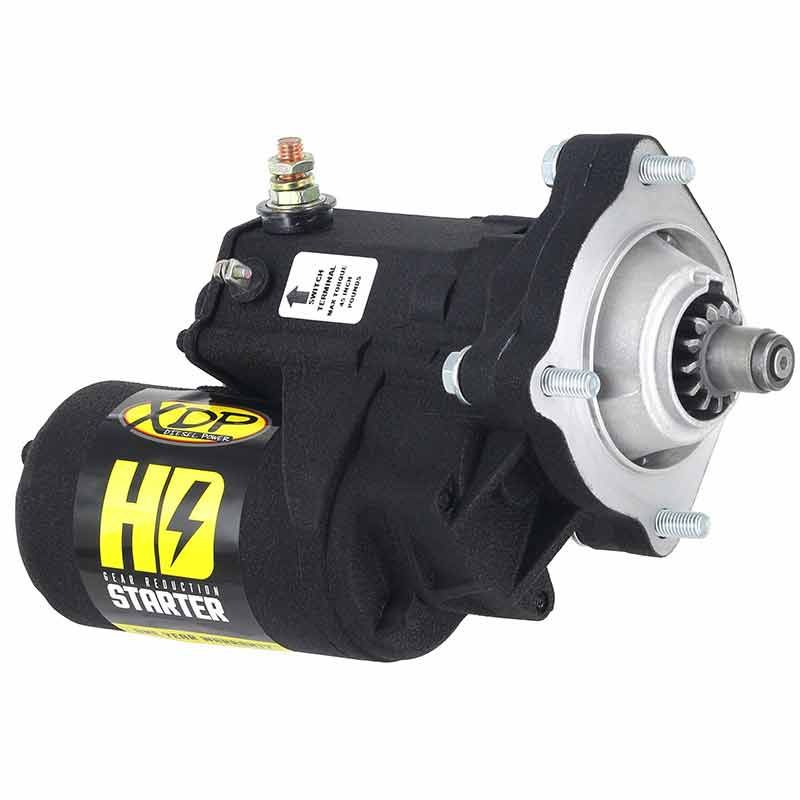

Gear Reduction Starter 94-03 Ford 7.3L Wrinkle Black XD253 XDP

You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD253 to get your 1994-2003 Ford 7.3L Powerstroke running in the most extreme environments. XDP's HD Gear Reduction Starters are fast, strong, and durable, giving you the ability to turn over even the most aggressive diesel engines.

The Gear Reduction Design of the XDP HD Starters are designed to produce the torque you need to start your engine. Each starter comes pre-tested, ready for installation and features a durable Wrinkle Black finish for corrosion resistance and aesthetics.

Includes adapter plate and mounting bolts required for installation on manual transmission applications.

Features:

• Wrinkle Black Finish
• HD Gear Reduction Design
• Includes Spacer and Bolts Required For Use On Manual Transmission 7.3 Applications.

Specifications:

• 3.6 HP
• 2.7 KW
• 260 Ft-Lbs. Torque
• 5.5:1 Gear Reduction

Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws.

This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly.

Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.
