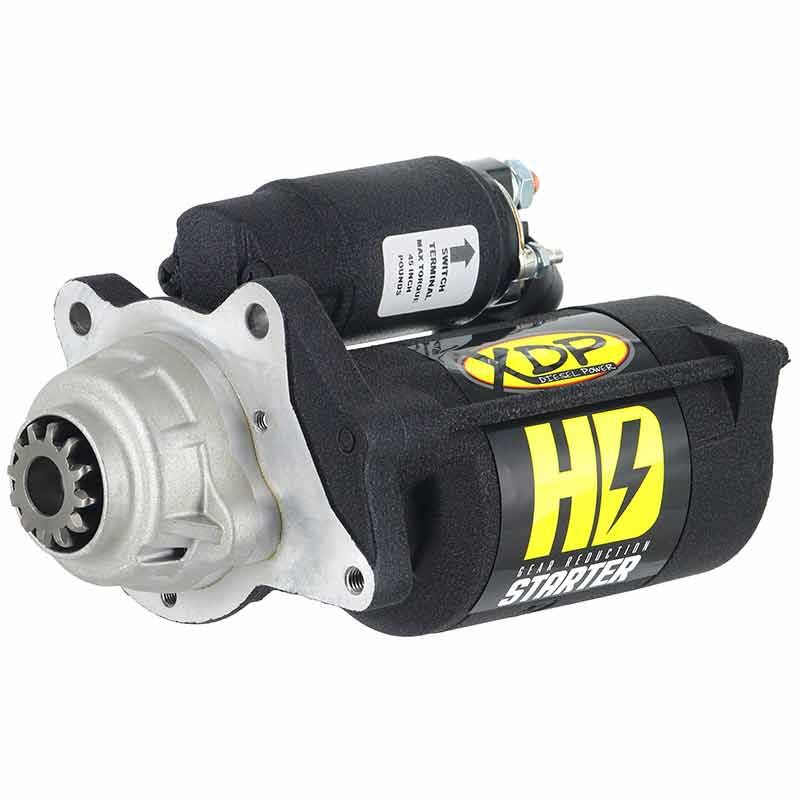

Gear Reduction Starter 11-16 Ford 6.7L Powerstroke Wrinkle Black XD254 XDP

You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD254 to get your 2011-2024 Ford 6.7 Powerstroke running in the most extreme environments. XDP's HD Gear Reduction Starters are faster, stronger, and more durable than your factory starter. This gives you the ability to turn over even the most aggressive diesel engines.

XDP's HD Gear Reduction Starters feature a motor that is quick and efficient that gives you the torque you need to reliably and consistently start your engine. Each starter comes pre-tested, ready for installation, and features a durable Wrinkle Black finish for corrosion resistance and enhanced aesthetics.

Features:

• HD Gear Reduction Design
• Wrinkle Black Finish
• Direct-Fit Replacement

Specifications:

• 4.0 HP
• 3.0 KW
• 275 Ft-Lbs. Torque
• 4.75:1 Gear Reduction

Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws.

This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 11V DC.

Starter heat shields are not required, but are an excellent idea for heat protection
